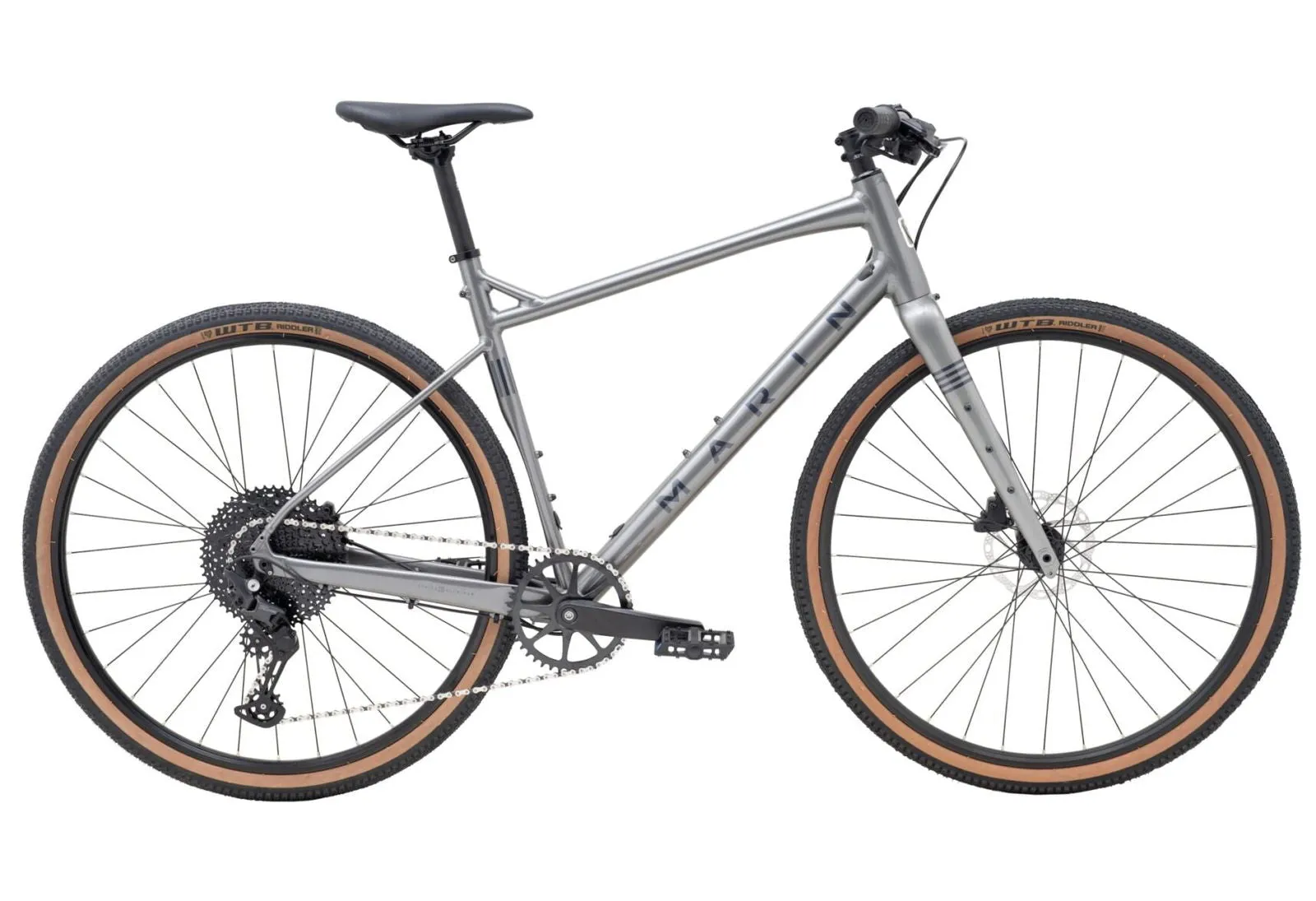

The Marin DSX is everything we want from a modern, flat-bar gravel bike.
Zippy aluminum frames, carbon forks, heaps of tire clearance, low standover, dropper post compatibility and a whole load of options for bags and fenders. Based around the Gestalt X drop-bar, we made the DSX to feel like an MTB but still cut it on all of those adventures that would normally demand curly bars.
Please note - specifications & price subject to change without prior notice
| 01. FRAME | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
| 02. FORK | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| 03. RIM | Marin Aluminum Double Wall, 21mm Inner, Disc Specific |
| 04. HUB REAR | Forged Aluminum Alloy, 142x12mm, Disc, 32H |
| 05. HUB FRONT | Forged Aluminum, 100x12mm, Disc, 32H |
| 06. SPOKES NIPPLES | 14g Black Stainless Steel |
| 07. TIRES | WTB Riddler, 700Cx45mm |
| 08. DERAILLEUR REAR | Shimano Deore, RDM5100, 11-Speed |
| 09. DERAILLEUR FRONT | - |
| 10. SHIFT LEVER | Shimano Deore, SLM5100, 11-Speed |
| 11. CRANKSET | Forged Aluminum, 42T Steel Narrow Wide Chainring |
| 12. BOTTOM BRACKET | Sealed Cartridge |
| 13. CHAIN | KMC X11 |
| 14. CASSETTE | Shimano, CSM5100, 11-Speed, 11-51T |
| 15. BRAKES FRONT | Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor |
| 16. BRAKES REAR | Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor |
| 17. BRAKE LEVERS | Tektro Hydraulic |
| 18. HANDLEBAR | Marin MiniRiser |
| 19. STEM | Marin 3D Forged Alloy |
| 20. GRIPS | Marin MTB |
| 21. HEADSET | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| 22. SEATPOST | Marin Alloy |
| 23. SADDLE | Marin DSX |
| 24. PEDALS | Marin Oso OEM Nylon Platform |
| 25. EXTRAS | Bolt-On Thru-Axles F and R |
