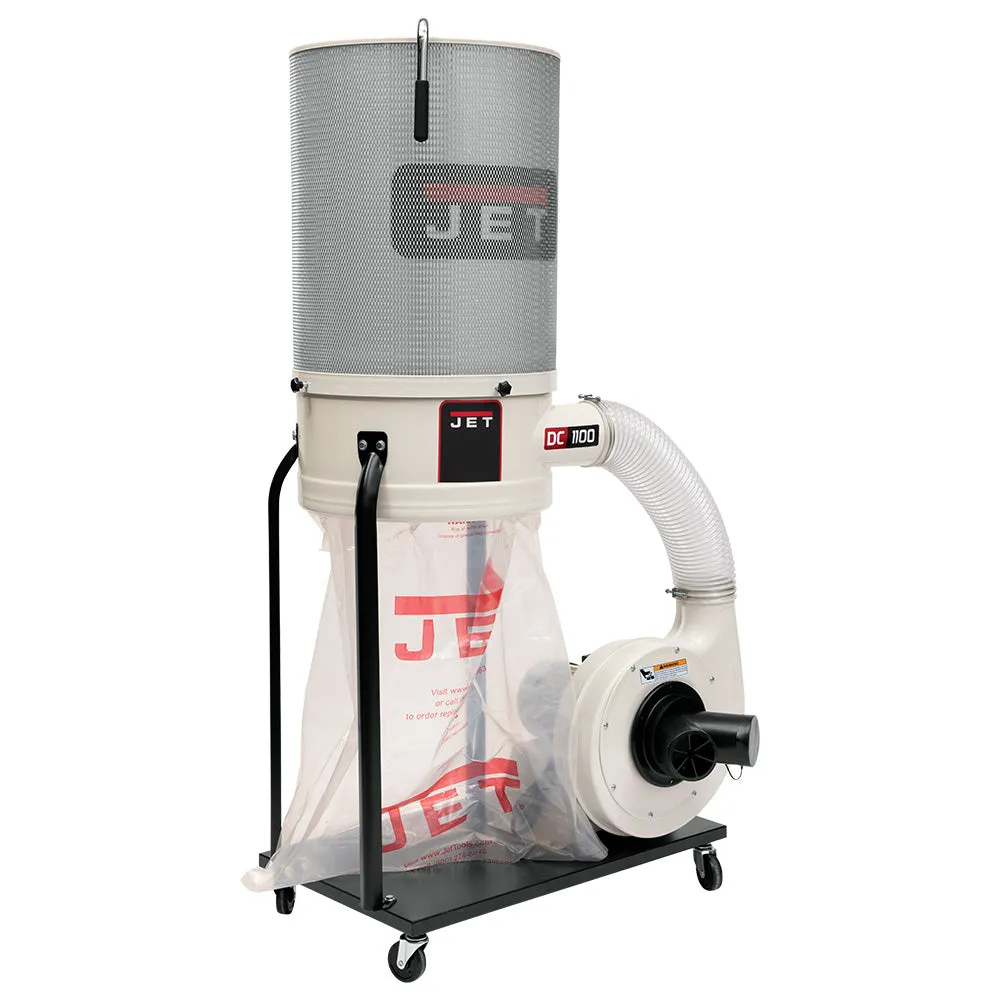

The JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

[TABS]

Features

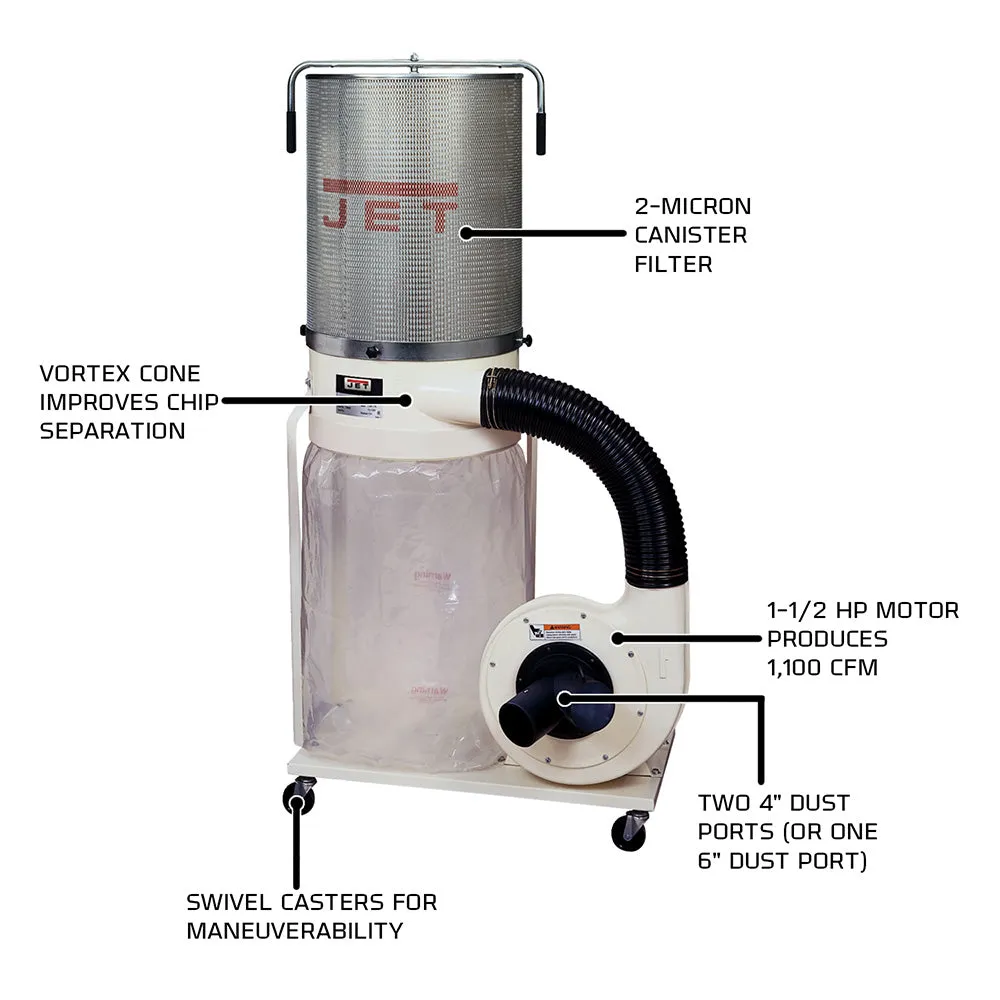

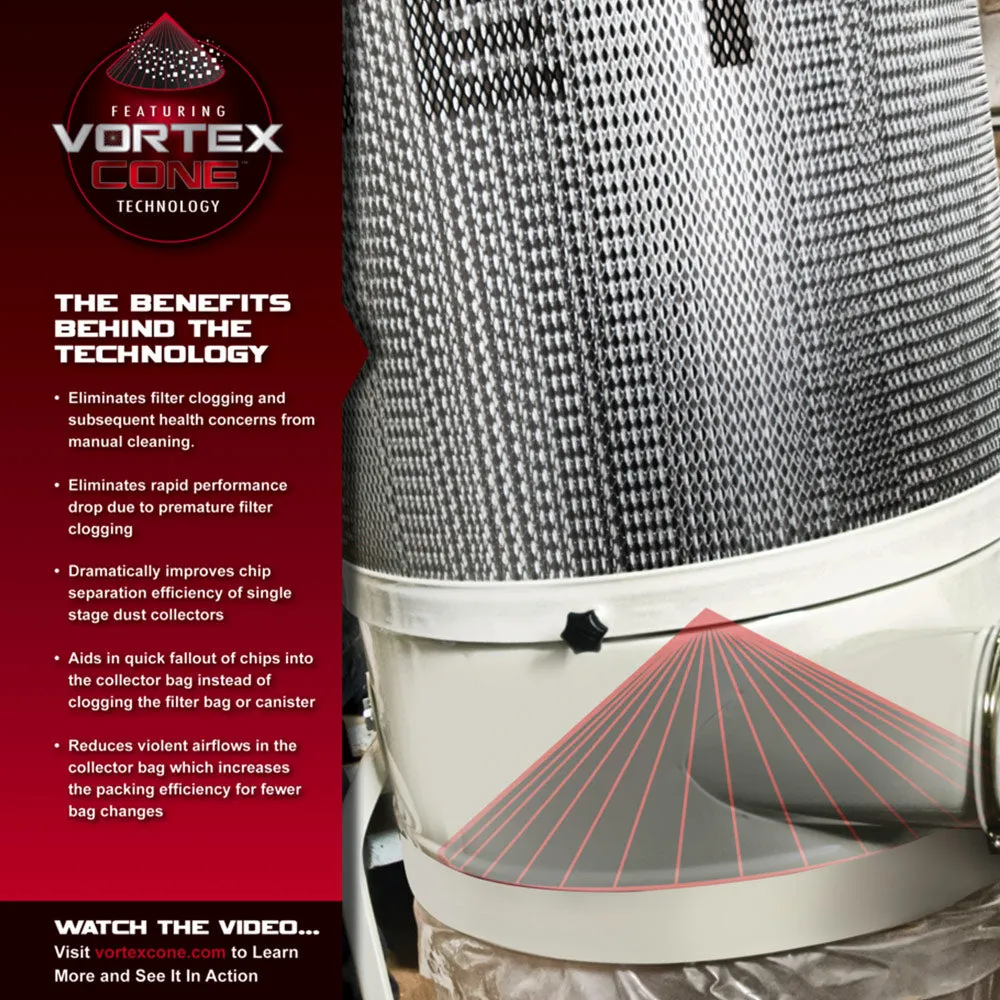

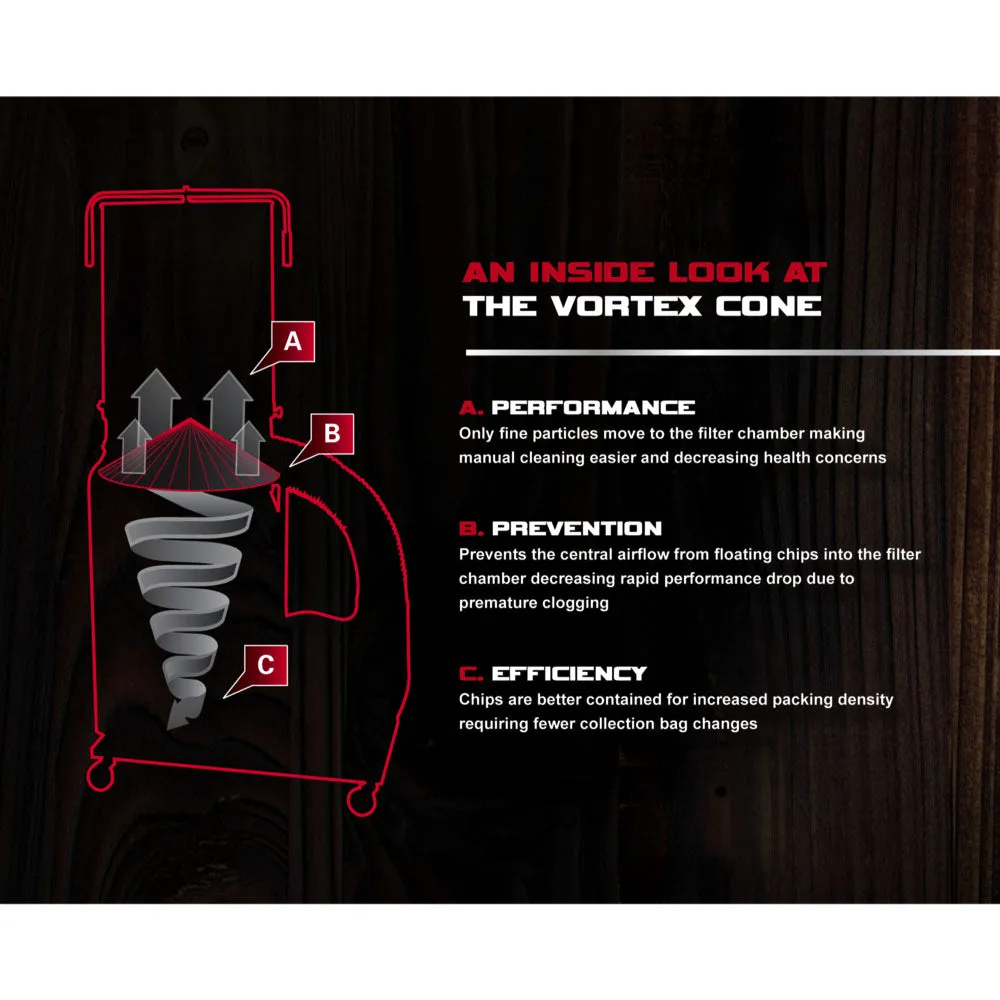

• Vortex Cone improves chip separation and collector bag packing efficiency

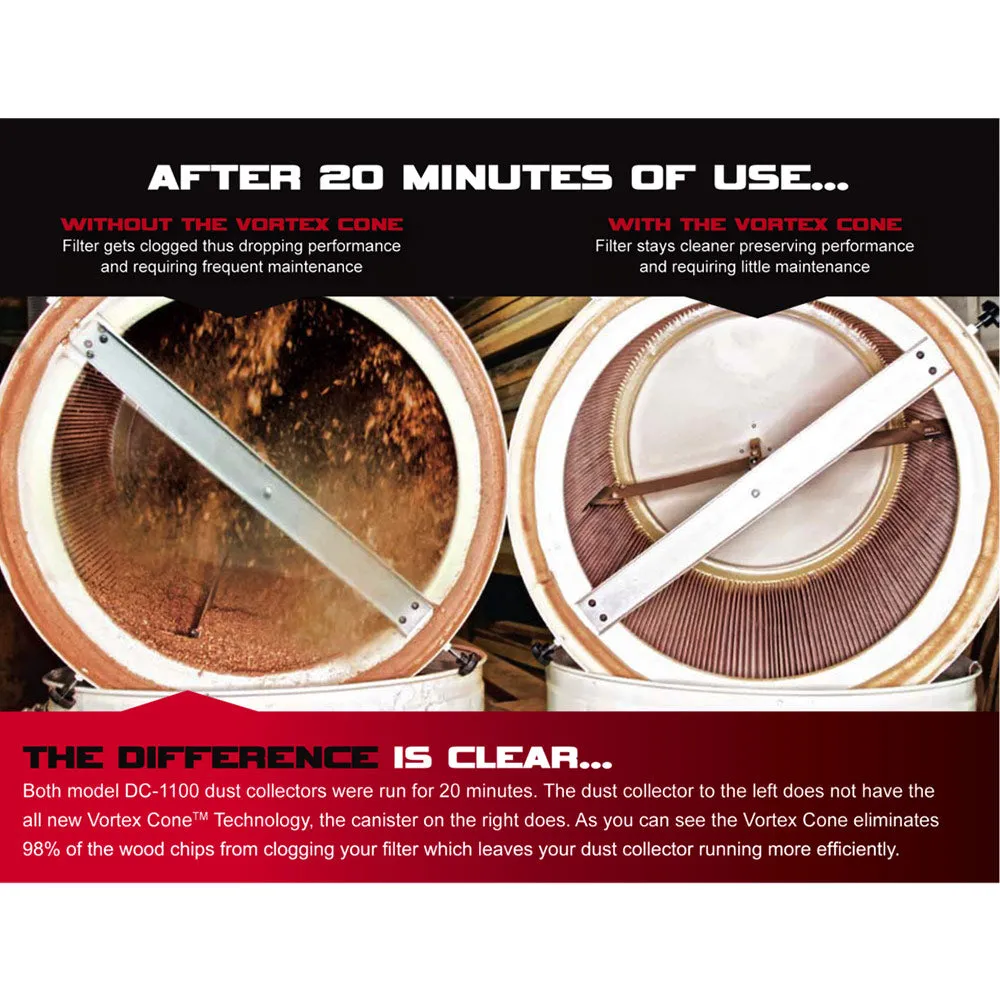

• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

Specs

Number of air inlets: 1 at 6", 2 at 4"
1-Hose connection dia.: 6"
2-Hoses connection dia.: 4"
Air flow @ 4": 1,100 CFM
Velocity @ 4" (FPM): 8,464
Static pressure (inch of water): 10.5
Efficiency: 2 Micron
Filter bag/canister length: 25"
Collection bag capacity: 5-3/10 Cu. Ft.
Collection bag length: 29"
Bag Dia.: 20"
Impeller material: Steel
Impeller dia. 11"
Sound rating: 70 - 80dB
Motor power: 1-1/2hp
Motor phase: 1-phase
Motor voltage: 115/230V
Prewired voltage: 115V
Motor (amps): 11/5.5
Net weight: 159 lbs.
